Datos del producto:
Pago y Envío Términos:
|
| Nombre: | Cristal de rubí sintético del Co Co2+ MgAl2O4 de la Q-transferencia pasiva | Diámetro: | Dia5mm |
|---|---|---|---|
| Grueso: | 1m m, 0.5m m. | Material: | Co2+: MgAl2O4 |
| Capa: | AR@1550nm | Umbral de daño:: | >500 MW/cm2 |
| Transmisión:: | el 30% al 99% | Índice de refracción:: | n= 1,6948 @1.54um |
| Alta luz: | Cristales que cambian de MgAl2O4 Q,cristales que cambian de rubí sintético del Co Q,cristales MgAl2O4 de 5m m |
||

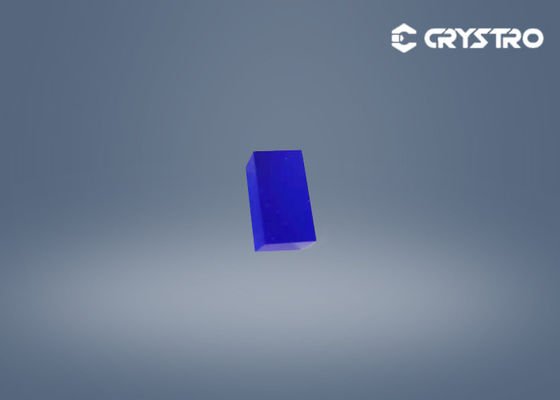

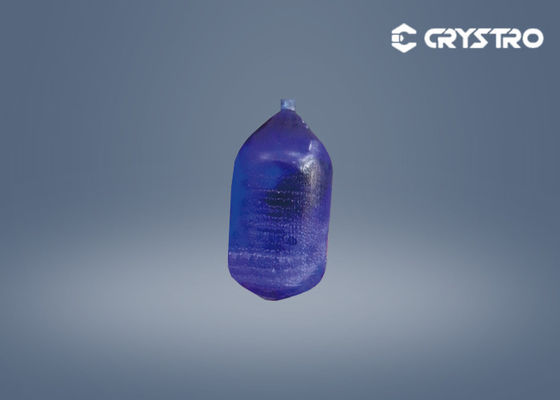

Passive Q-switching Co Spinel Co2+ MgAl2O4 Crystal
Introduction:
Crystro's Passive Q-switches or saturable absorbers generate high power laser pulses without the use of electro-optic Q-switches, thereby reducing the package size and eliminating a high voltage power supply. Co2+:MgAl2O4is a relatively new material for passive Q-switching in lasers emitting from 1.2 to 1.6μm, in particular, for eye-safe 1.54μm Er:glass laser, but also works at 1.44μm and 1.34μm laser wavelengths.
Spinel is a hard, stable crystal that polishes well. Cobalt substitutes readily for magnesium in the Spinel host without the need for additional charge compensation ions. High absorption cross section (3.5×10-19 cm2) permits Q-switching of Er:glass laser without intracavity focusing both with flash-lamp and diode laser pumping. Negligible excited-state absorption results in high contrast ratio of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10.
Features:
Suitable for 1540 nm eye-safe lasers
High absorption section
Negligible excited state absorption
High optical quality
Uniformly distributed Co
|
Co2+:MgAl2O4 |
|
|
Crystal structure |
Cubic |
|
Lattice parameters |
8.07Å |
|
Density |
3.62 g/cm3 |
|
Melting Point |
2105°C |
|
Refractive Index |
n= 1.6948 @1.54 µm |
|
Thermal Conductivity /(W.cm-1.K-1@25°C) |
0.033 W |
|
Specific Heat/ (J·g-1·K-1) |
1.046 |
|
Thermal Expansion /(10-6 /°C@25°C) |
5.9 |
|
Hardness (Mohs) |
8.2 |
|
Extinction Ratio |
25 dB |
|
Orientation |
[100] or [111] < ±0.5° |
|
Optical density |
0.1-0.9 |
|
Damage Threshold |
>500 MW/cm2 |
|
Doping concentration of Co2+ |
0.01-0.3 atm%
|
